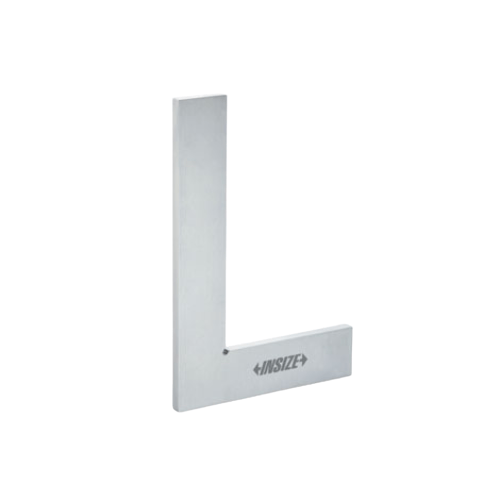

Insize Machinist Square (Economic Type)

The Insize 4796-300 Machinist Square is designed for checking squareness and 90° angle measurement in workshop applications. Made of carbon steel and complying with DIN875 Grade 2, this economic type square offers dependable accuracy for general use. Note: it is not hardened and has no anti-rust treatment.

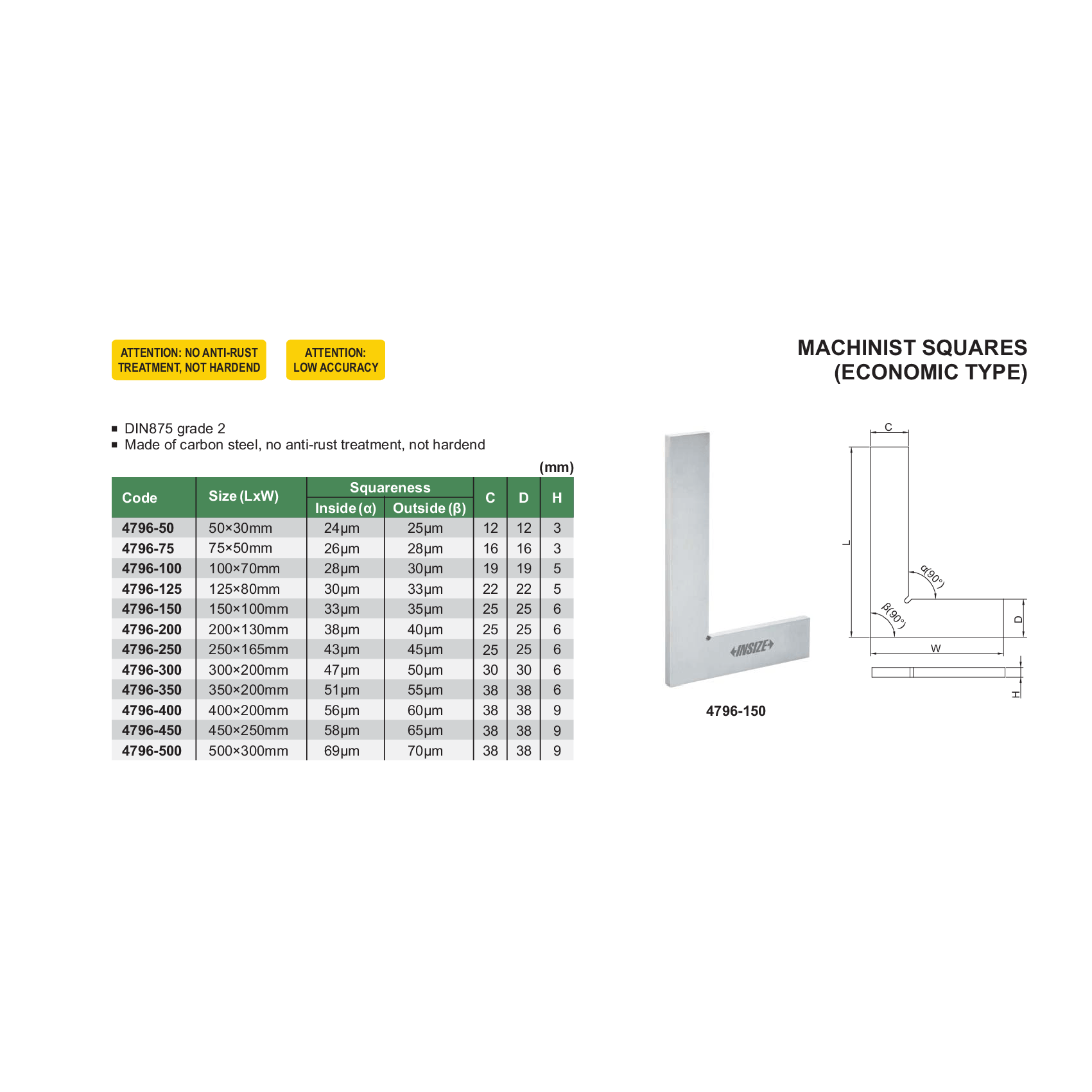

Specifications :

Part No: 4796-300
Size (L×W): 300×200 mm
Squareness (Inside α): 47 μm
Squareness (Outside β): 50 μm
C: 30 mm
D: 30 mm
H: 6 mm
Material: Carbon steel (not hardened, no anti-rust treatment)
Standard: DIN875 Grade 2
Application: Checking squareness and 90° angle measurement in general machining
